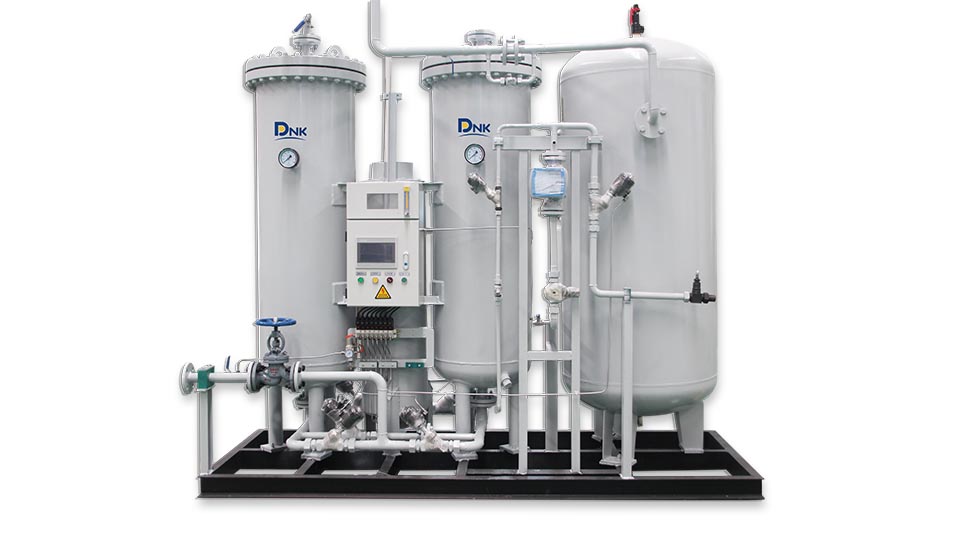

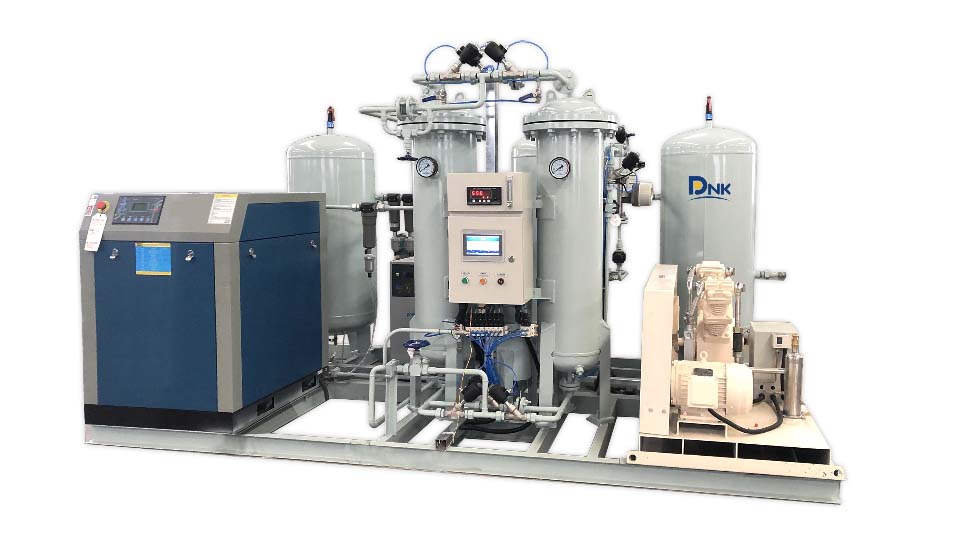

PSA Nitrogen Generator

  • Intelligent alarm and monitoring system, high operation reliability
  • Optimized production process, lower energy consumption
  • Wide range of adjustment, can meet different customer needs
  • Intelligent operating system, easy to operate and maintain
  • Modular design, easy installation and commissioning, small footprint.
  • Wide application range, less investment

Product Profile

PSA nitrogen generator is composed of air compressor,air treatment device, air buffer tank, nitrogen generator host, control and monitoring system, etc. The pressure swing adsorption nitrogen production technology uses the characteristics of selective adsorption of carbon molecular sieves,adoptscycle period of pressurized adsorption, decompression desorption, make compressed air enters the adsorption tower alternately (it can also be completed in a single tower) to achieve the separation of nitrogen and oxygen in the air, so as to continuously and stably produce high-purity nitrogen products.Widely used in chemical industry, steel, metallurgy, laboratory, new energy, food, medicine, shipping, coal, tire and many other fields.

Industry Application

  • Chemicals & specialty products
  • Water treatment
  • Food & drinks
  • Pulp & Paper
  • Metal
  • Medical insurance
  • Oil & gas
  • Electronic product

Technical Flow Chart

The pressure swing adsorption oxygen generator consists of an air compressor, an air treatment device, an air buffer tank, an oxygen generator host, a control and monitoring system, etc.

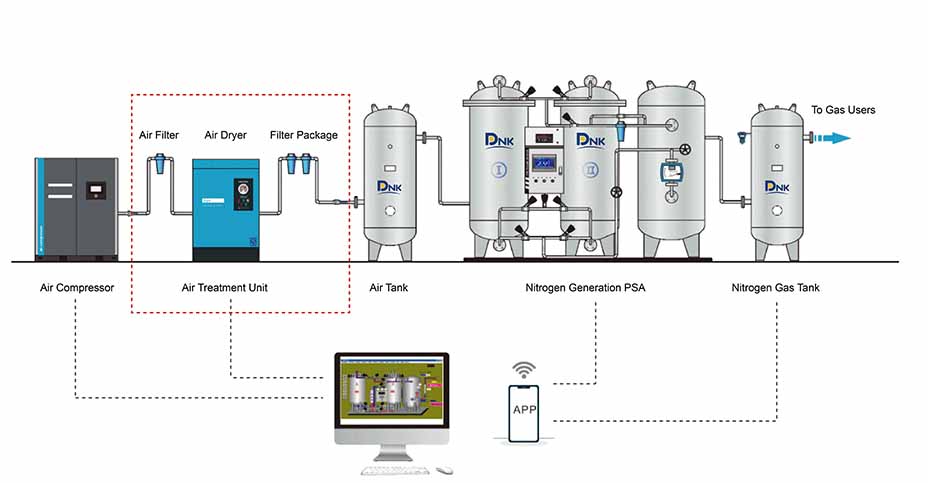

PSA Nitrogen Generator Technical Flow Chart

Technical Parameters

No.  Model Nitrogen purity(%) (Nm³/h)Capacity Discharge pressure(Mpa)
1 KYPN-10 95-99.9995 10 0.4-0.8
2 KYPN-20 20
3 KYPN-40 40
4 KYPN-60 60
5 KYPN-50 50
6 KYPN-100 100
7 KYPN-130 130
8 KYPN-180 180
9 KYPN-200 200
10 KYPN-250 250

Note: The above parameters are for reference only, and can also be customized according to customer requirements.
