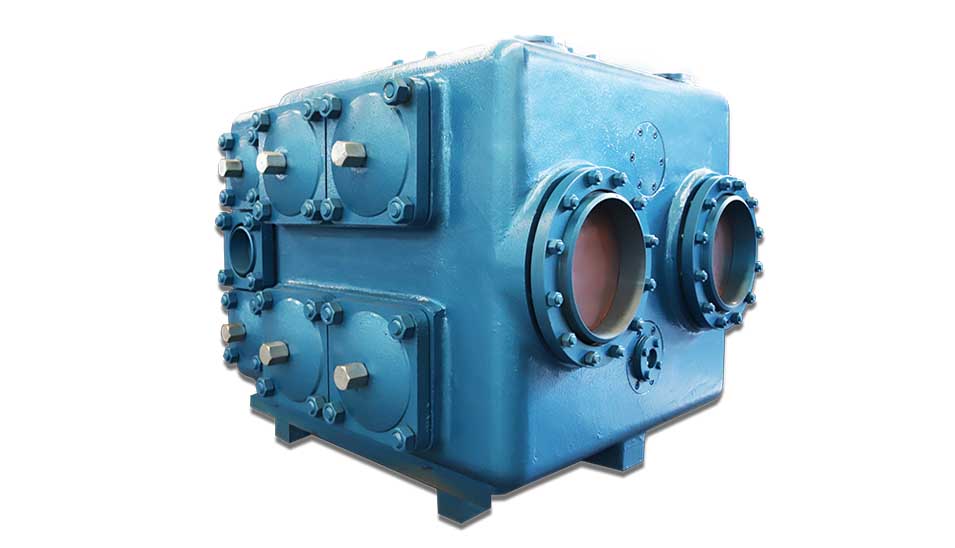

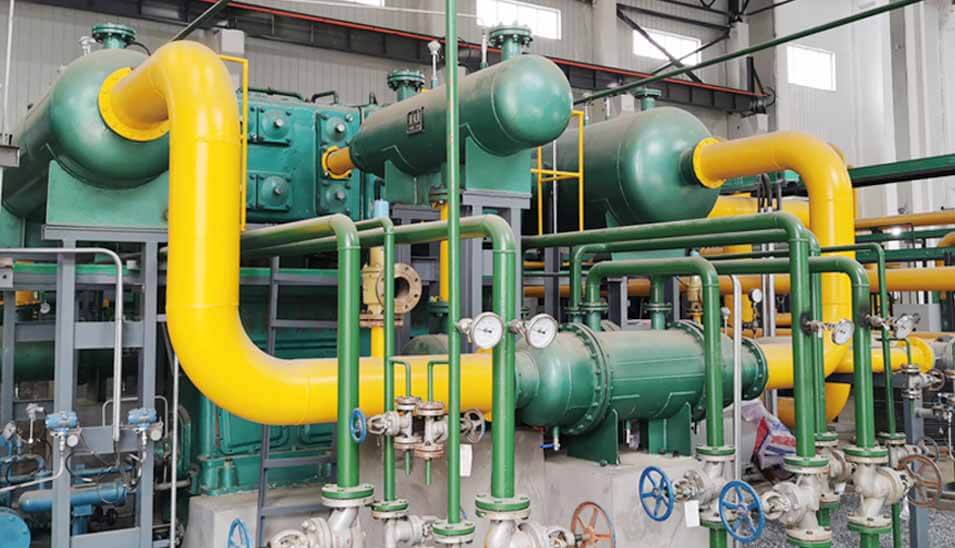

When the reciprocating compressor works, the crankshaft drives the connecting rod, the connecting rod drives the piston, and the piston moves up and down. The movement of the piston changes the volume in the cylinder. When the piston moves downward, the volume of the cylinder increases, the intake valve opens, the exhaust valve closes, and the gas is sucked in to complete the intake process. When the piston moves upward, the cylinder volume decreases, the outlet valve opens, and the intake valve closes, completing the compression process. So as to realize the gas compression and transportation process. Application range of reciprocating compressors: medium or high pressure conditions in petroleum, chemical, natural gas, air separation and other industries.
model | medium | flow volume | outlet pressure | flow volume | flow volume | inlet/outlet pressure | inlet/outlet temperature | Synchronous speed | Dimensions | area required |
Nm³/h | Mpa(G) | Nm³/h | m³/min | Mpa(G) | °C | r/min | (L×W×H)cm | (L×W)m | ||
1J2L | O₂;N₂ | <0.3 | 4200 | 71 | 0.012/0.25 | 25/40 | 500 | 240×140×330 | 6×5 | |
2J2L | O₂;N₂ | 1000~4000 | 0.3~1.0 | 1000 | 17 | 0.005/1.0 | 25/40 | 600 | 175×115×250 | 4×3.5 |
2000 | 38 | 0.005/0.7 | 25/40 | 500 | 180×115×280 | 5.5×4.5 | ||||
4000 | 65 | 0.015/1.0 | 25/40 | 500 | 210×140×330 | 6×5 | ||||
2J4L | O₂;N₂ | 4000~7500 | 0.3~1.0 | 5000 | 81 | 0.012/1.0 | 25/40 | 500 | 320×132×330 | 8×6 |
7500 | 140 | 0.005/0.5 | 25/40 | 428 | 400×150×365 | 9×7 | ||||
12000 | 153 | 0.045/0.8 | 25/40 | 375 | 400×150×365 | 10×7 | ||||
3J3L | O₂;N₂ | 500~2300 | 1.0~3.0 | 500 | 10 | 0.005/1.5 | 25/40 | 500 | 200×105×240 | 5×4 |
1500 | 28 | 0.005/3.0 | 25/40 | 500 | 220×110×275 | 6×5 | ||||
2300 | 38 | 0.012/2.5 | 25/40 | 500 | 220×110×285 | 6.5×5 | ||||
3J4L | O₂;N₂ | 2500~6500 | 1.0~3.0 | 2700 | 44 | 0.015/3.0 | 25/40 | 500 | 345×132×325 | 8×6 |
3600 | 60 | 0.012/3.0 | 25/40 | 500 | 320×132×330 | 8×6 | ||||
4500 | 75 | 0.012/3.0 | 25/40 | 500 | 320×132×330 | 8×6 | ||||
5200 | 82 | 0.012/3.0 | 25/40 | 500 | 320×132×330 | 8×6 | ||||
6500 | 107 | 0.012/3.0 | 25/40 | 375 | 400×150×365 | 9×7.5 | ||||
4J4L | O₂;N₂ | >3.0 | 1000 | 16 | 0.012/3.5 | 25/40 | 500 | 250×112×250 | 6×4.5 | |
3600 | 60 | 0.012/3.5 | 25/40 | 428 | 320×132×330 | 8×6.5 | ||||
5000 | 52 | 0.08/4.2 | 25/40 | 500 | 320×160×330 | 10×6.5 | ||||
Remarks: The above is mainly the conventional ASU (oxygen inlet 0.012MPa (G); nitrogen inlet pressure 0.005MPa (G)) oxygen and nitrogen compressor standard flow range, If the inlet pressure is unconventional, the standard compression flow of the corresponding type of compressor can be greatly increased., |
