Profession rock-solid quality

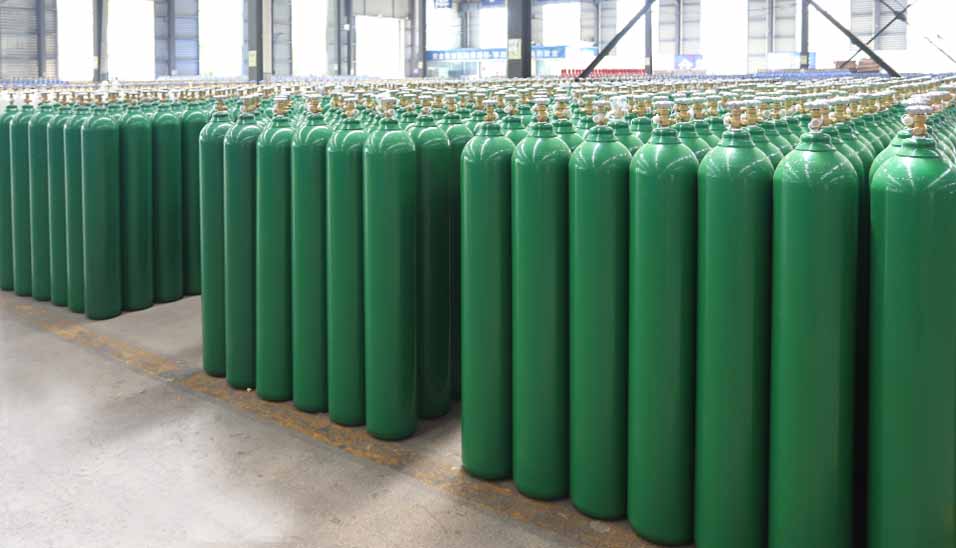

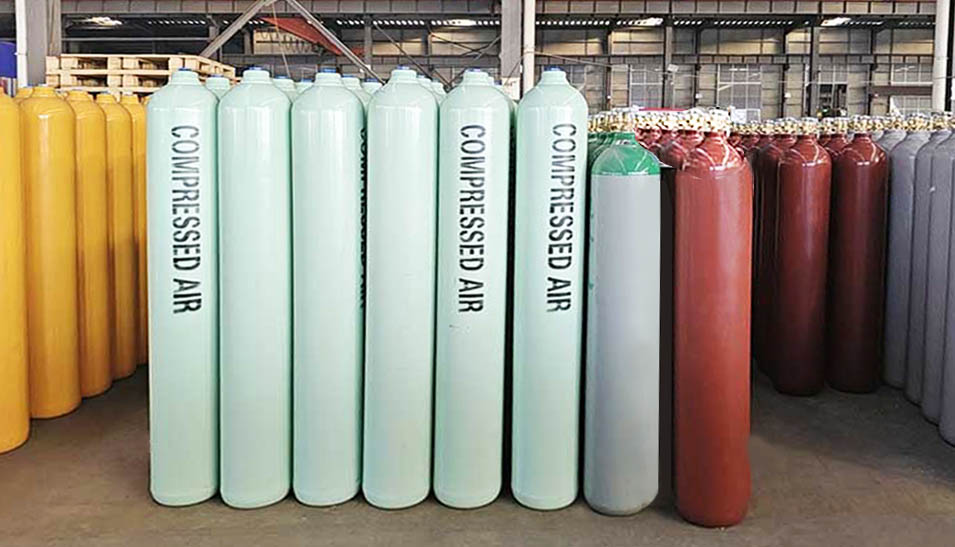

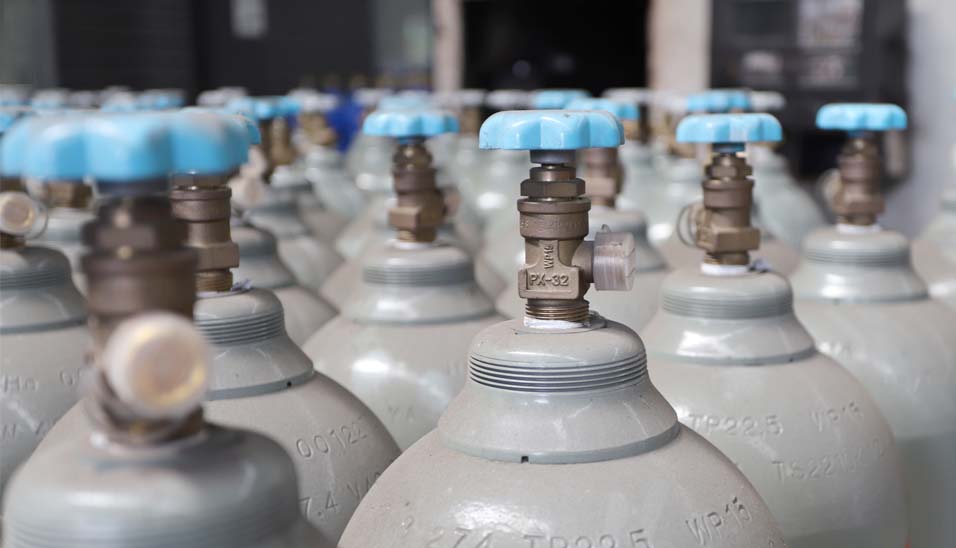

Seamless steel gas cylinders

  • Customization
    A variety of product size can be customized according to your needs.
  • Carbon steel bottle body material
    Carbon steel has high hardness , high strength and low plasticity, which can effectively reduce the damage of gas cylinders.

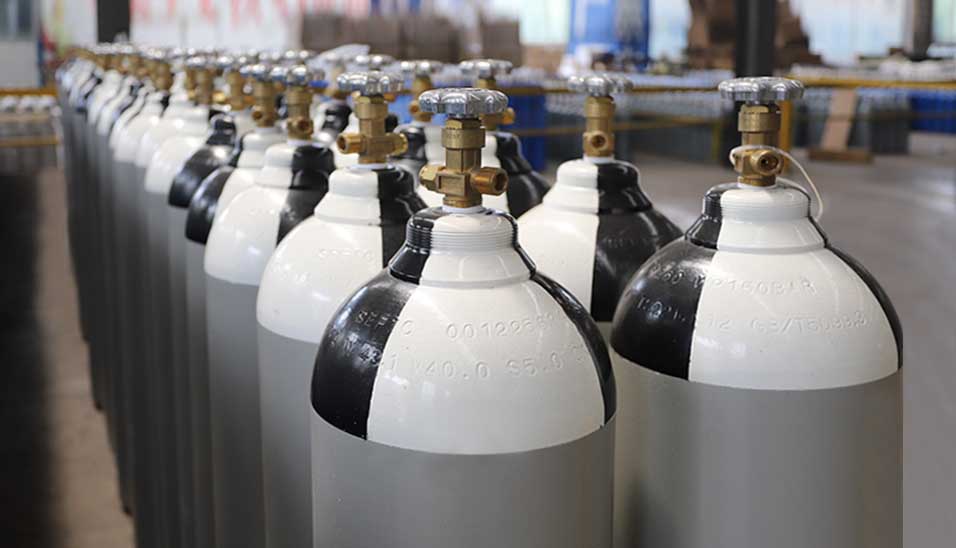

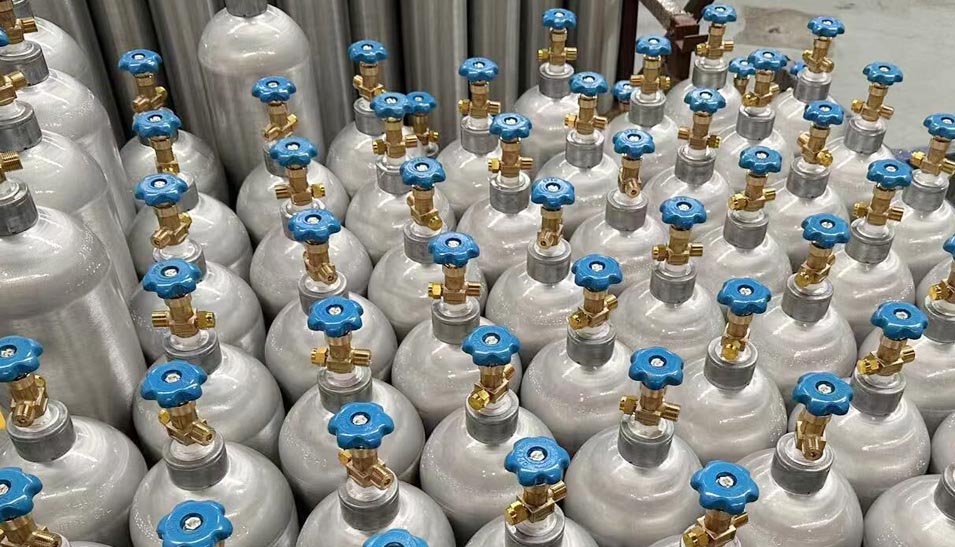

  • Brass valve
    Brass has high trength,hardness and corrosion resistance, which can ensure the air tightness of the valve.

Product Profile

Steel seamless gas cylinder is made of steel billet as raw material, by stamping and drawing, or by seamless steel pipe as material, by hot spinning closing bottom of the cylinder.The cylinder material is the calm steel smelted by alkaline open furnace, electric furnace or oxygen blowing alkaline converter,such as high quality carbon steel, manganese steel, chromium molybdenum steel or other alloy steel.Used to contain long-term gas (compressed gas) and high-pressure liquefied gas.

Industry Application

  • Chemicals & specialty products
  • Water treatment
  • Food & drinks
  • Pulp & Paper
  • Metal
  • Medical insurance
  • Oil & gas
  • Electronic product

Technical Flow Chart

VERTICAL CRYOGENIC CYLINDER QUALITY RAW MATERIALS

Seamless steel gas cylinders Technical Flow Chart

Technical Parameters

 Models Outside Dia.(mm) Volume(L) Length(mm) Weight(kg) Working Pressure Test pressure Wall thickness Material
WMⅡ219-19-15A 219 19 685 27 15Mpa 22.5Mpa 5.7mm 37Mn
WMⅡ219-20-15A 20 715 28
WMⅡ219-25-15A 25 865 33
WMⅡ219-32-15A 32 1075 40
WMⅡ219-36-15A 36 1195 44
WMⅡ219-38-15A 38 1255 46
WMⅡ219-40-15A 40 1315 48
WMⅡ219-42-15A 42 1375 50
WMⅡ219-45-15A 45 1465 54
WMⅡ219-50-15A 50 1615 60
