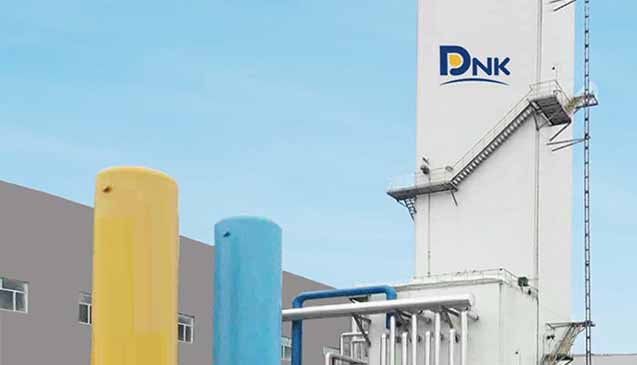

Small scale ASU

  • Overall skid-mounted structure, high-pressure hose connection, easy installation.
  • Small size, small footprint and low investment cost.
  • Internal compression process, low maintenance cost and high work efficiency.
  • Adopt advanced process design, low energy consumption for equipment operation.
  • Reliable quality and stable operation.

Product Profile

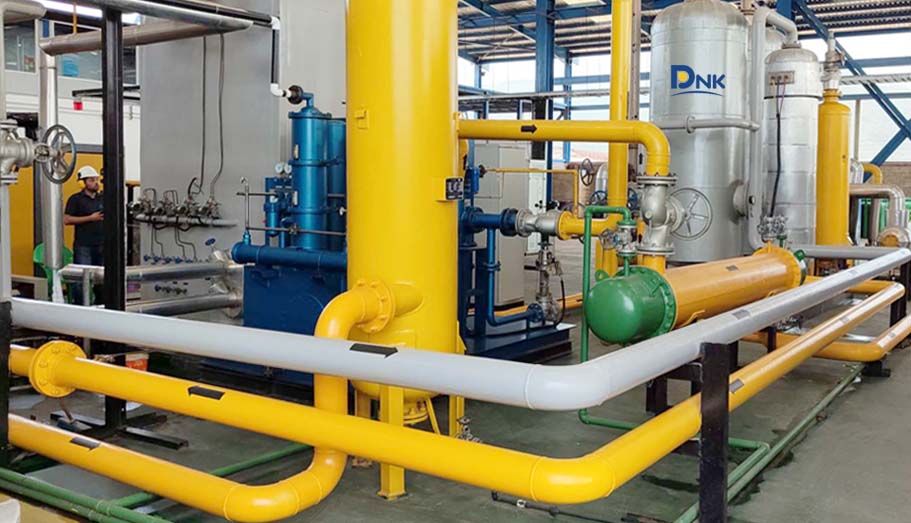

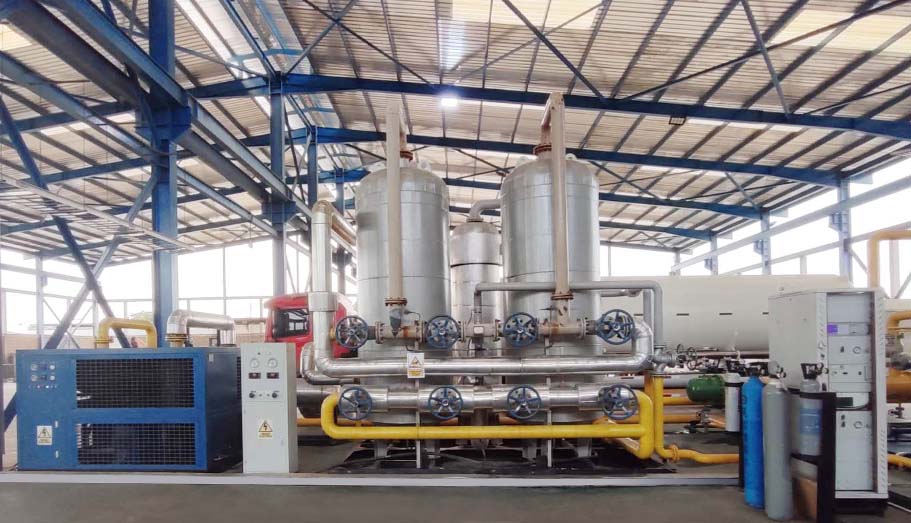

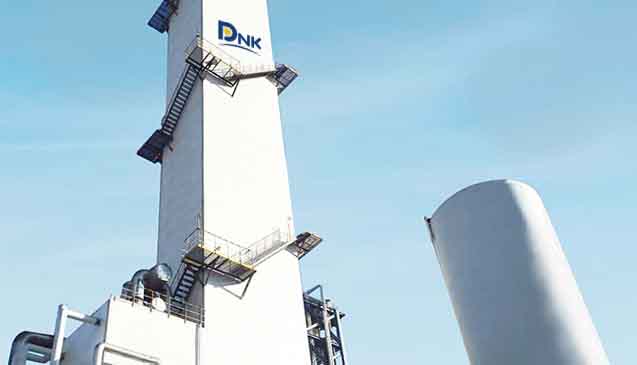

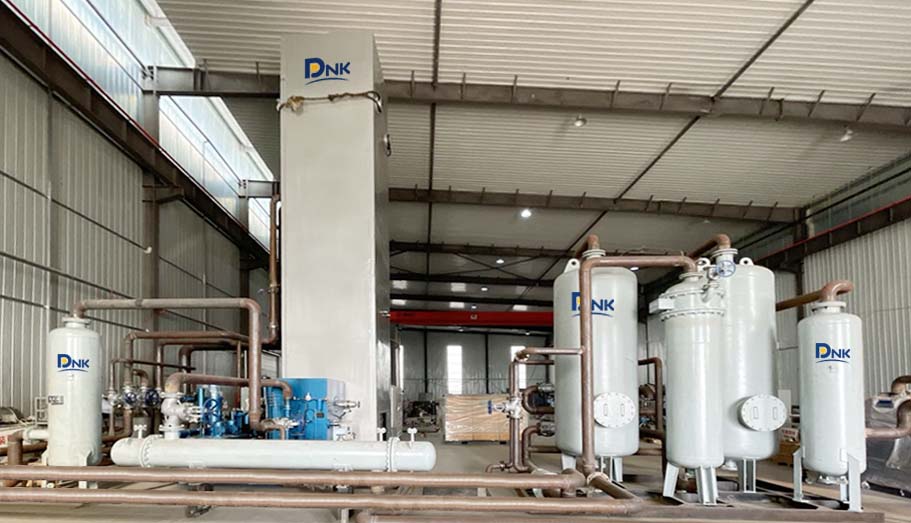

Small scale ASU consists of air compressor, pre-cooling unit, purification system, turbo expander, fractionation tower, liquid oxygen pump and connecting pipelines. Small scale ASU is a plant that uses cryogenic technology to extract oxygen from the air. It mainly relies on the turbo expander to provide cooling capacity to liquefy the air. Then use the different boiling points of liquid oxygen and nitrogen to separate oxygen and nitrogen in the fractionation tower. Then obtain high-purity oxygen and high-purity nitrogen. Application scope of small scale ASU: hospital oxygen, steel smelting, non-ferrous smelting industry, chemical industry, paper industry, laser cutting, small gas factory.

Industry Application

  • Chemicals & specialty products
  • Water treatment
  • Food & drinks
  • Pulp & Paper
  • Metal
  • Medical insurance
  • Oil & gas
  • Electronic product

Technical Parameters

Capacity(Nm³/h) Purity(% or ppm)
Model oxygen nitrogen oxygen(%) nitrogen(ppm) Pressure(Mpa)
SKDO-50 50 99.5 Adjust as required
SKDON-50 50 50 99.5 10
SKDO-100 100 99.5
SKDON-100 100 100 99.5 10
SKDON-160 160 160 99.5 10
SKDON-250 250 250 99.5 10
SKDON-350/550 350 550 99.5 10
SKDON-750/1500 750 1500 99.5 10
SKDON-1000/2100 1000 2100 99.5 10
