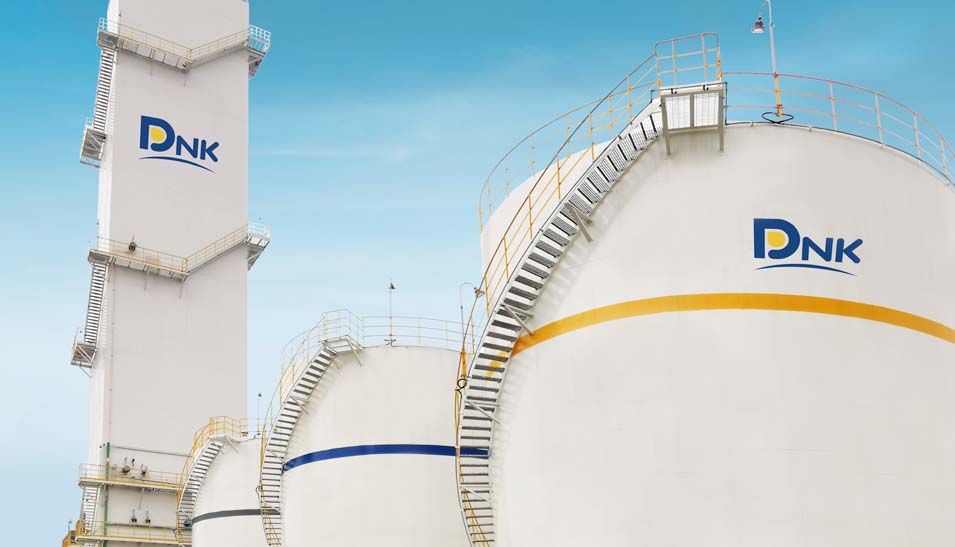

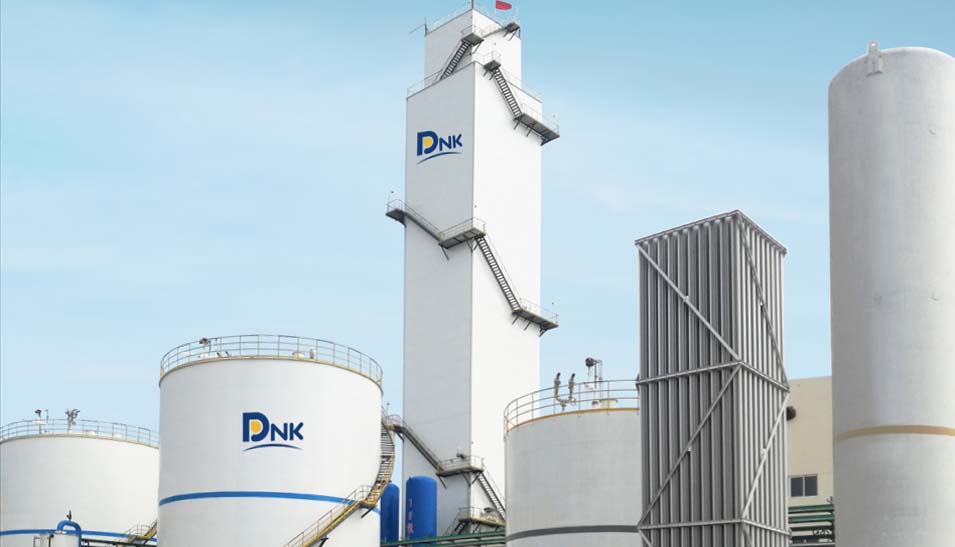

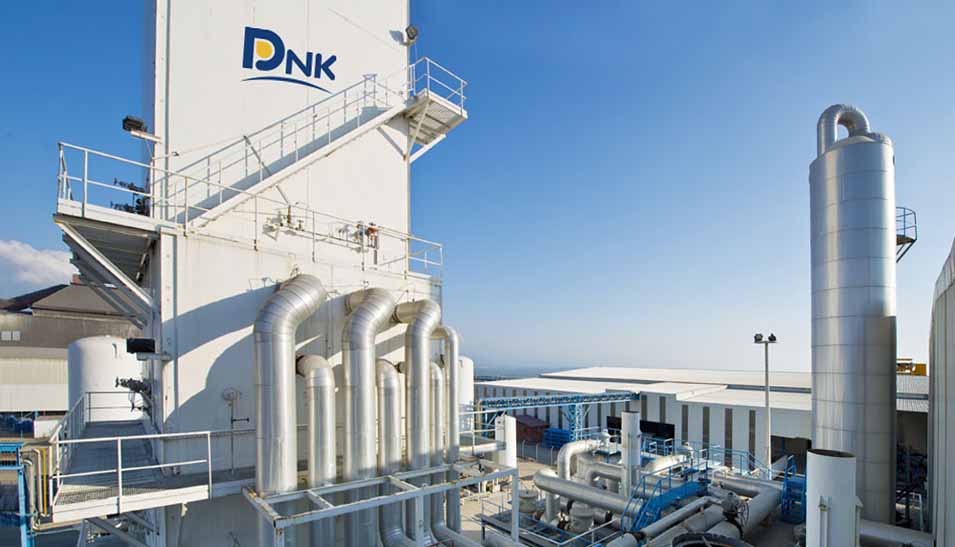

Ultra Nitrogen Plant

  • Advanced processing technology, stable and reliable performance.
  • Optimized process and piping design, lower energy consumption.
  • Intelligent control, simple operation, stable equipment operation.
  • Cold box skid-mounted design, easy installation and operation.
  • Intelligent monitoring system, easy maintenance.

Product Profile

Ultra nitrogen plant consists of air compressor, air pre-cooling system, molecular sieve purification system, fractionation tower system, nitrogen compression system and instrument control system, etc. The ultra nitrogen plant provides raw air through the air compressor, cooled by the cooling unit, purifies the air with the molecular sieve adsorber, turbine expander provides the cooling capacity to ensure the long-term stable and reliable operation of the nitrogen-making equipment production process. The control of the whole set is completed by the DCS system.

Industry Application

  • Chemicals & specialty products
  • Water treatment
  • Food & drinks
  • Pulp & Paper
  • Metal
  • Medical insurance
  • Oil & gas
  • Electronic product

Technical Parameters

Model Application

Nitrogen purity



Optional nitrogen capacity

Nitrogen gas pressure(Mpa) Optional oxygen output Oxygen purity
KDN-3000 Chemical industry ≤2PPmO2

HeNe≤25PPm

3000nm3/h or 150TPD

(150nm3/h or 4.5TPD)

0.7 350nm3/h or 12TPD 99.6%O2



KDN-6000 Chemical industry 6000nm3/h or 240TPD 0.25
KDN-11000 Chemical industry 11000nm3/h or 330TPD 0.25
KDN-11500 Chemical industry 11500nm3/h or 345TPD(200nm3/h or 6TPD) 0.7 300nm3/h or 10TPD
KDN-20000 Chemical industry 20000nm3/h or 600TPD(500nm3/h or 15TPD) 0.26
KDN-50000 Chemical industry 50000nm3/h or 1500TPD 0.4 1500 nm3/h or 51.3TPD

Note: The above parameters are for reference only, and can also be customized according to customer requirements.
