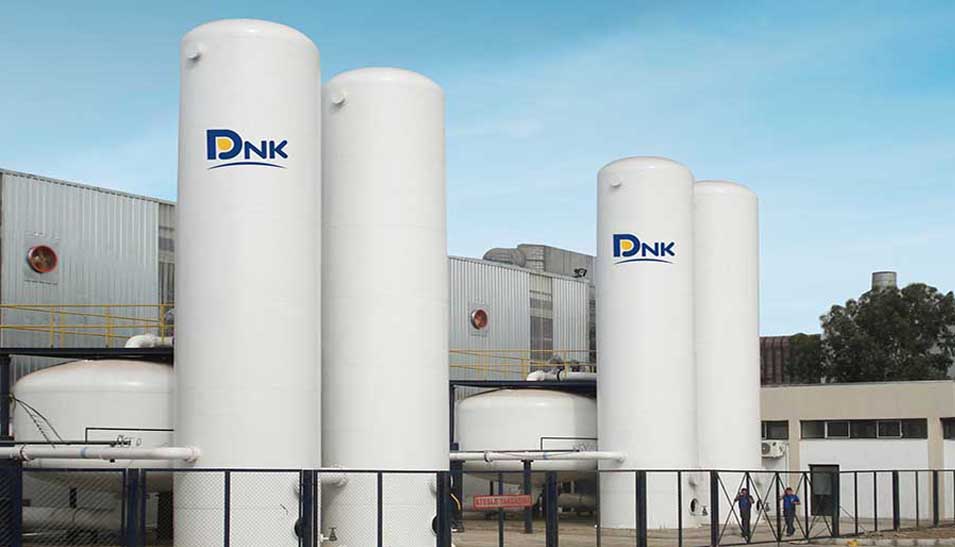

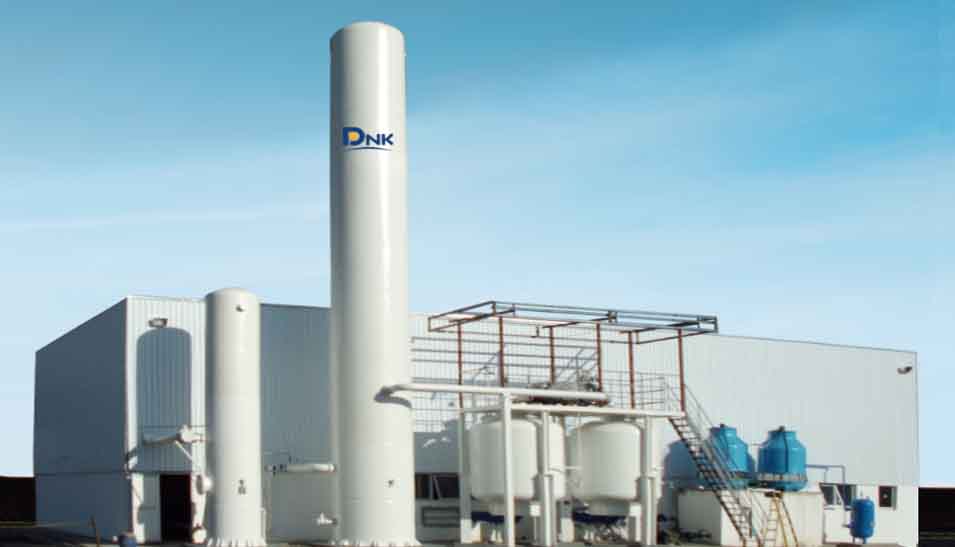

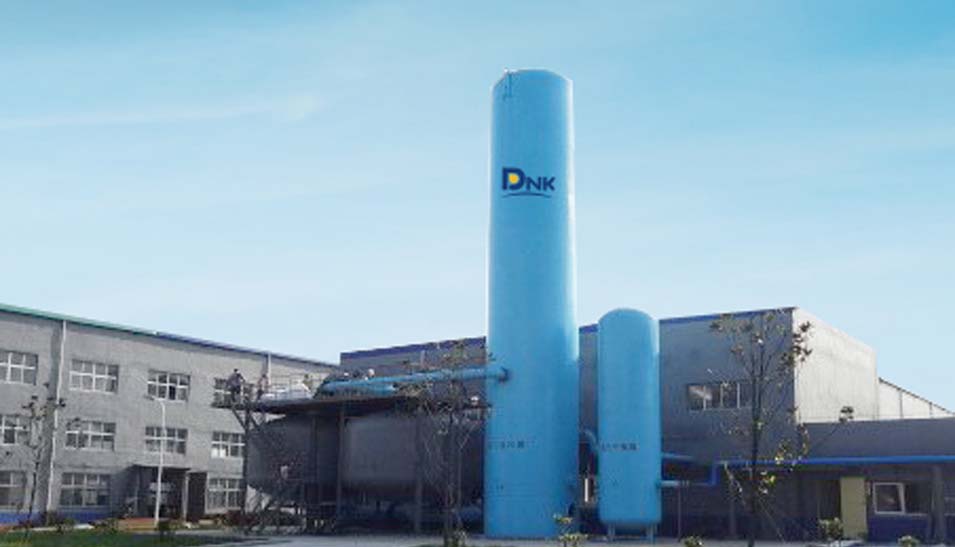

VPSA Oxygen Plant

  • Advanced design technology, low noise, green and environmental protection
  • Low energy consumption for oxygen production, saving comprehensive operating costs.
  • Automatic design process, simple operation, flexible load adjustment
  • Modular design, easy installation, small footprint
  • Reliable quality and stable operation

Product Profile

The basic principle of vacuum desorption pressure swing adsorption oxygen generator is to use the difference of oxygen and nitrogen components in the air to balance the adsorption amount on the adsorbent and the characteristics that the adsorption amount increases with the increase of pressure and decreases with the decrease of the pressure, so as to realize the process of desorption from the air. Separation of oxygen-enriched. After the air is pressurized, it is fed into the bed with adsorbent. Nitrogen is first selectively adsorbed, and oxygen is enriched in the gas phase due to less adsorption. When nitrogen is adsorbed and saturated in the adsorbent bed, the adsorbent bed is evacuated and depressurized to desorb the nitrogen components and realize the regeneration of the adsorbent. Using two or more adsorbent beds and repeating the cyclic adsorption and desorption steps, the linked oxygen and nitrogen separation process can be achieved to obtain the desired oxygen-enriched product gas. Application scope of PSA oxygen production: iron and steel industry: blast furnace oxygen-enriched coal injection iron making, electric furnace steelmaking with oxygen blowing, etc.; non-ferrous smelting industry: crude copper oxygen-enriched smelting, crude lead oxygen-enriched smelting, etc.; chemical industry: oxygen-enriched fermentation etc.; environmental protection industry: pollution treatment, etc.; paper industry: oxygen bleaching, etc.

Industry Application

  • Chemicals & specialty products
  • Water treatment
  • Food & drinks
  • Pulp & Paper
  • Metal
  • Medical insurance
  • Oil & gas
  • Electronic product

Technical Parameters

Project name



Year



Application



Gas Oxygen yield



Gas Oxygen purity



Gas product pressure (compressor inlet) Gas product pressure (compressor outlet)



VPSA-2000 or TPD-67 2008 smelting 2000Nm3/h or 67TPD 75%~93% 0.01 MPa



Up to3Mpa
VPSA-700 or TPD-24 2012 pulp bleaching 700Nm3/h or 24TPD
VPSA-1800 or TPD-60 2013 smelting 1800Nm3/h or 60TPD
VPSA-300 or TPD-10 2013 Glass 300Nm3/h or 10TPD
VPSA-160 or TPD-5 2014 sewage treatment 160Nm3/h or 5TPD
VPSA-5000 or TPD-170 2017 smelting 5000Nm3/h or 170TPD

Note: The above parameters are for reference only, and can also be customized according to customer requirements.
